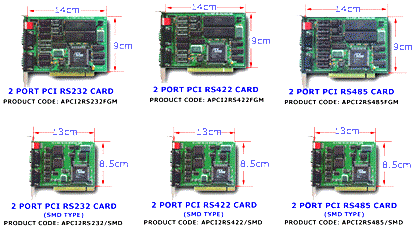

|The PCCOM PCI bus 2 port adapter
is an 32 bits PCI bus board with Plug and Play (PnP) features, it provides
two asynchronous serial communication ports (RS232 or RS422/RS485),
which link the computer and serial peripheral devices such as terminals,
modems, serial printers, plotters, ... etc.
The PCCOM PCI bus 2 port
adapter is particularly suited to facilitate the connection of terminals
(VDUs) in multi-user operating systems. The PCCOM board may be installed
in any Pentium or hardware compatible systems. The PnP features let hardware
configuration for IRQ and I/O address is detected by BIOS automatically,
you don’t need set switch and jumper.
The features of the PCCOM PCI bus
2 port adapter are:
|*32 bit PCI bus with Plug and Play
*Two RS232 ports or RS422/RS485 ports for asynchronous communications.
*Suitable for SCO UNIX, Linux, MS/DOS, WINDOWS NT/2000, WINDOWS 95/98/ME, OS/2... etc.
*Pentium hardware compatibles.
*Baud rate up to 115200 for normal speed mode and up to 460K for high speed mode.
*Provides 16550 port that contains 16 bytes FIFO for each port.
*Up to 4 boards be installed in one computer system.
*Software compatible with PCCOM98/2000.
*Operating temperature 0 to 60
