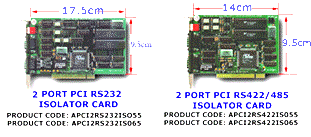

The PCCOM PCI bus 2 port
RS232/RS422/RS485 with isolator adapter is an 32 bits PCI bus board with
Plug and Play (PnP) features, it provides two asynchronous serial communication
ports (RS232 or RS422/RS485), which link the computer and serial peripheral
devices such as terminals, modems, serial printers, plotters, ... etc.
The on board isolator can isolate voltage up to 2500V r.m.s..
The features of the PCCOM PCI bus 2 port adapter are:
*32 bit PCI bus with Plug
and Play (PnP) features.
*Two RS232 ports or RS422/RS485
for asynchronous communications.
*Provides isolator function,
which can isolate voltage up to 2500V r.m.s.
*Suitable for SCO UNIX,
Linux, MS/DOS, WINDOWS/NT/2000, WINDOWS 95/98/ME, OS/2.
*Pentium hardware compatibles.
*Baud rate up to 115200
for normal speed mode and up to 460K for high-speed mode.
*Provides 16550 port that
contains 16 bytes FIFO for each port.
*Up to 4 boards be installed
in one computer system.
*Software compatible with
PCCOM98/2000.
*Operating temperature
0 to 60
|
