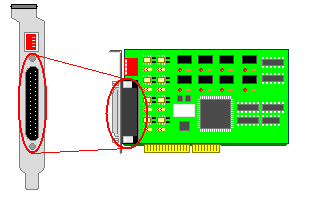

Connector - PCI bus 8 channels relay output/photo isolator input card
Pin No
 Channel No
 Description
1
 Relay channel 1
 NO - Normal Open
2
 Relay channel 1 COM
3
 Relay channel 1 NC - Normal Close
4
 Relay channel 2
 NO - Normal Open
5
 Relay channel 2 COM
6
 Relay channel 2 NC - Normal Close
7
 Relay channel 3
 NO - Normal Open
8
 Relay channel 3 COM
9
 Relay channel 3 NC - Normal Close
10
 Relay channel 8
 NO - Normal Open
11
 Relay channel 8 COM
12
 Opto channel 1
 +Input
13
 Opto channel 2
 +Input
14
 Opto channel 3
 +Input
15
 Opto channel 4
 +Input
16
 Opto channel 5
 +Input
17
 Opto channel 6
 +Input
18
 Opto channel 7
 +Input
19
 Opto channel 8
 +Input
20
 Relay channel 4
 NO - Normal Open
21
 Relay channel 4 COM
22
 Relay channel 4 NC - Normal Close
23
 Relay channel 5
 NO - Normal Open
24
 Relay channel 5 COM
25
 Relay channel 6
 NO - Normal Open
26
 Relay channel 6 COM
27
 Relay channel 7
 NO - Normal Open
28
 Relay channel 7 COM
29
 GND
 GND
30
 Opto channel 1
 - Input
31
 Opto channel 2
 - Input
32
 Opto channel 3
 - Input
33
 Opto channel 4
 - Input
34
 Opto channel 5
 - Input
35
 Opto channel 6
 - Input
36
 Opto channel 7
 - Input
37
 Opto channel 8
 - Input
